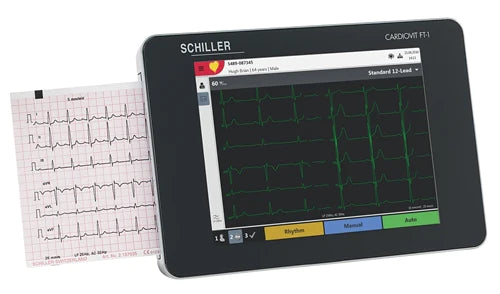

Schiller Cardiovit FT-1 EKG ECG Interpretative Machine
Features and Benefits
Meets newest FAA standards for EKG report submission! (FAA Class I Physicals)
Power and flexibility of a PC in a portable ECG
Bidirectional communication allows for easy data access, while WiFi as a standard feature enables the direct and fast transmission of ECG reports to an EMR system.
Schiller Link Software is an easy-to-use software to import patient data from the EMR system and export customized PDF reports directly on the PC.

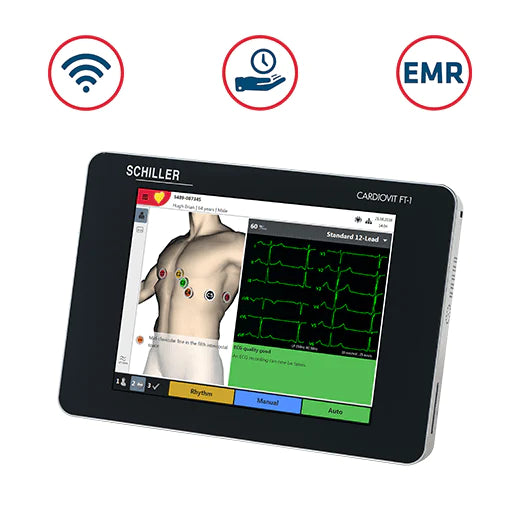

Easy Wi-Fi connectivity, combined with ECG preview on a large display, supports paperless workflow and cost saving.
Schiller's most advanced algorithms are implemented in the CARDIOVIT FT-1.
ETM: Simultaneous 12-lead ECG interpretation programs for uncompromising quality and reliability.
Pediatric ECG: The CARDIOVIT FT-1 offers optimal signal quality which makes it the ideal tool for paediatric ECGs.
Resting Rhythm: Records all 12 channels up to 4 minutes. Reduces the risk that important rhythm data might be overlooked. The recordings can be printed, stored, reviewed and transmitted.
Cuplprit Coronary Artery Algorithm: Detection of the location of the coronary obstruction in the patient with acute chest pain and thereby the size of the cardiac area at risk.
Optional mobile cart is available
Materials Included
FT-1 ECG Machine
(1) 10-Lead Patient Cable
(1) Power Cord
(10) Alligator Clips
(100) Electrodes
(1) Pack of Paper
(1) User Manual
Technical Specifications
Dimensions: 9" x 6" x 1"
Weight: 2 lbs
Ambient Conditions
Operation: 10 to 40 °C
Transport/Storage: -10/+5 to 50 °C
Operation: 15 to 95 % non-condensing
Transport/Storage: 10 to 95 % non-condensing
Operating: 700 to 1060 hPa
Transport/Storage: 500 to 1060 hPa
Electrical Data
Power: Mains or battery operation
Power Supply: 100 to 240 VAC, 50 to 60 Hz, 1.0 A (100 V) to 0.6 A (240 V)
Power consumption: Approx. 30 VA / 15 VDC
Battery Capacity: 4 hours of continuous display
ECG Amplifier
CF Defibrillation protected
Interfaces & Communication
Interface: LAN (Ethernet 1 Gbit), USB
Internal Memory: up to 350 ECG or 100 Resting Rhythm Recordings
WiFi: 802.11a, b, g, n
Security protocol: WPA2-PSK, WPA-PSK, WEP64/128-PSK
Encryption: AES and TKIP
Myogram filter: LP 25, LP 40 or LP 150 Hz
AC Filter: 50 or 60 Hz
Recording Functions
12 lead simultaneous analysis
On screen review of ECG
Standard, Cabrera
QT Correction: Bazett, Fredericia, Fremingham or Hodges
Provides 10 seconds of instantaneous ECG acquisition
Lead selection: Right precordial (V4r), Standard C4r, left posterior, Nehb
Computerized measurements
LCD Resolution: 1024 x 768
LCD Size: 8"
Displayed Leads: 12
Sensitivity: 10 mm/mV
ECG Speed: 25 mm/s
Review ECG
On a area of 118 x 192 mm
Review Speed: 12.5/25/ 50 mm/s
Review Amplitude: 5/10/20 mm/mV
Review Resting System
On a area of 118 x 192 mm
Review speed: 6.25 mm/s
Review amplitude: 2.5 or 5 mm/mV
Internal Thermal Printer
Selectable Print Formats
Real-time rhythm strip (Manual mode)
Printing number of traces in Real-time rhythm: 6
Thermopaper Format: Z folded 114 x 150 mm
Paper Speed: 5/12.5/25/50 mm/s (5/12.5 manual mode only), for resting rhythm 6.25 mm/s
Sensitivity: 5/10/20 mm/mV, for Resting Rhythm 2.5 or 5 mm/mV
Direct Fucntion Keys: Touchscreen
Warranty Information
3-Year Warranty
