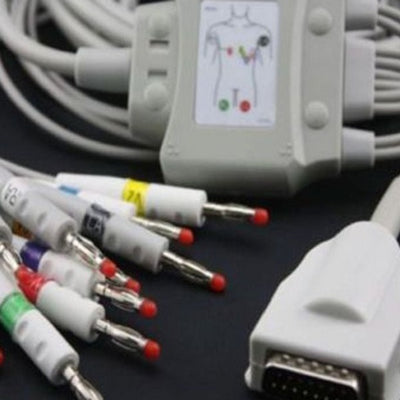

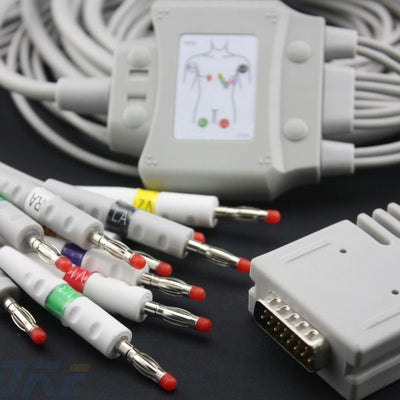

- Burdick 10-Lead Shielded EKG Cable AHA Din3.0 ,15 pins connector
- REF: K1102B
- S/N: GD20210628001201
- Accurate measurement and fast responses
- Easy to clean and repair
- Latex free
- TPU cable, gray
- ATRIA PLUS, ATRIA3000, Eclipse 4 ,Eclipse 400 ,Eclipse8,Eclipse 800,Eclipse 850 ,Eclipse 850i,Eclipse Plus,EclipseLE II BURDICK

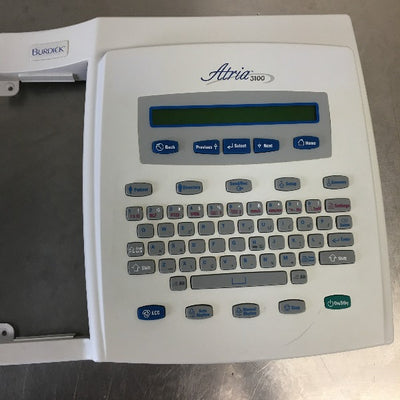

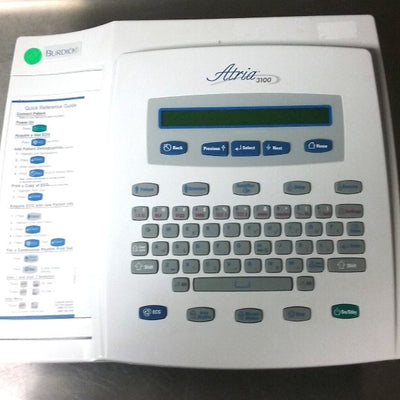

Burdick 3100 top cover with display keypad.
Tested in working Condition.
Ready to ship.
No worn down buttons.
This compact ECG recorder offers performance and value in addition to many standard features and a wide range of configuration options. The three-channel backlit preview display is viewable under all lighting conditions. Automatic ECG measurement is standard. Other features include an easy-to-use interface with single-button operation; three-, four- or six-channel formats; individual lead-fail messages and a stable baseline filter that eliminates baseline wander.
NEW Patient cables & Clips.
Power cord, 1pack of Electrodes & Paper
BURDICK ATRIA 3100 Interpretive EKG Machine
Includes New cables, Clips, Power Cord and Paper
We Buy, Sell and Repair EKG machines
If you require further information, feel free to call us at (954) 482- 2061
Burdick ekg full unit needs new battery.
In working condition.
Ready to ship.
New patient cables & clips
1 power cord

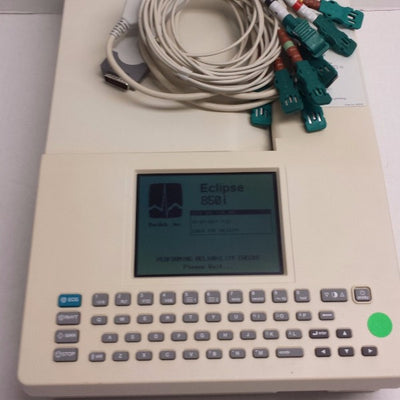

Burdick Eclipse 850 EKG Machine
High performance and unequaled reliability in a compact package
Proven in over 10,000 installations, the Burdick Eclipse 850 EKG Machine delivers high performance in a compact package. With all the functionality of a hospital-grade ECG, it is the ideal choice for medical professionals in either a hospital or physician’s office, where ECGs are performed frequently
Burdick Eclipse 850 EKG Machine Technical Specifications:
Dimensions 11.75″ x 18.16″ x 4.14″ (299 x 462 x 105 mm)
Weight 14.2 lbs (6.45 Kg)
Display Backlit 320 x 240 LCD
Keyboard Full alphanumeric keypad
Input/output Compact flash (proprietary true IDE); Units w/communications Serial RS-232; Telephone line interface (RJ11C); Analog/TTL/ExTOL output (25 pin D)
Data storage 40 patient records
Power requirements AC operation: 115/230 V AC +/-10%, 0.80/0.40 A, 50/60 Hz; Fuses: For 115 V, 1.0A, 250 V type T; for 230 V, 0.5A 250 V type T; Battery operation: 16.8V NiCad rechargeable battery pack (80 minutes w/o printing or 40 minutes w/ 40 ECGs)
Printout Printout device: 216 mm thermal dot array; Paper dimensions: 8.5″ x 11″ (US letter) or 210 mm x 300 mm (A4); Paper type: Thermal sensitive; Chart
speeds: 10, 25, 50 mm/sec; Gain: 5, 10, 20 mm/mV; 10 mm/mV limb with 5 mm/mV chest; 20 mm/mV limb with 10 mm/mV chest; Printout formats:
Standard or cabrera 3, 4, 6 or 12 channel; additional rhythm formats
Acquisition Lead selection: I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6, V4R; supports Frank X, Y, Z, Cabrera, and Nehb D, A, J; Interpretation (option): Diagnosis, measurements, reason statements; Modes: Automatic, rhythm or manual; Frequency response: Meets or exceeds ANSI/AAMI EC11-1991 standard; Input impedance: Meets or exceeds ANSI/AAMI EC11-1991 standard; Electrode offset tolerance: +/-300 mV; A/D conversion: 10 µV LSB; Artifact filter response:
40 Hz, -3db; Data resolution: 500 samples/second, 5 µV
Environmental Operating temperature: 50°F to 104°F (10°C to 40°C); Operating relative specifications humidity: 25% to 95%, non-condensing; Operating atmospheric pressure: 700 KPa to 1060 KPa; Storage temperature: -4°F to 131°F (-20°C to 55°C); Storage relative humidity: 25% to 95%, non-condensing; Storage atmospheric pressure: 700 KPa to 1060 KPa
Conforms to standards EN60601-1:1999 / CSA C22.2 no. 601-1-M90 UL2601-1 EN60601-2-25 / CSA C22.2 no. 601-2-25 EN60601-1-2:1993
Safety Leakage current: Patient <10 µA, chassis <100 µA; Defibrillation protection: to 5000 V, 400J

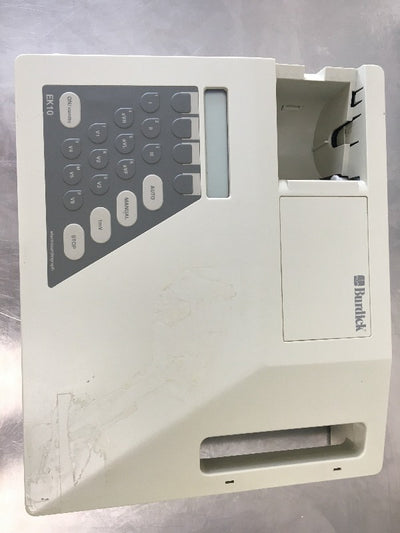

EKG10 missing paper door.
EKG still powers on and is in working condition.
Redy to ship
New patient cables and Clips
Power cord & Paper
