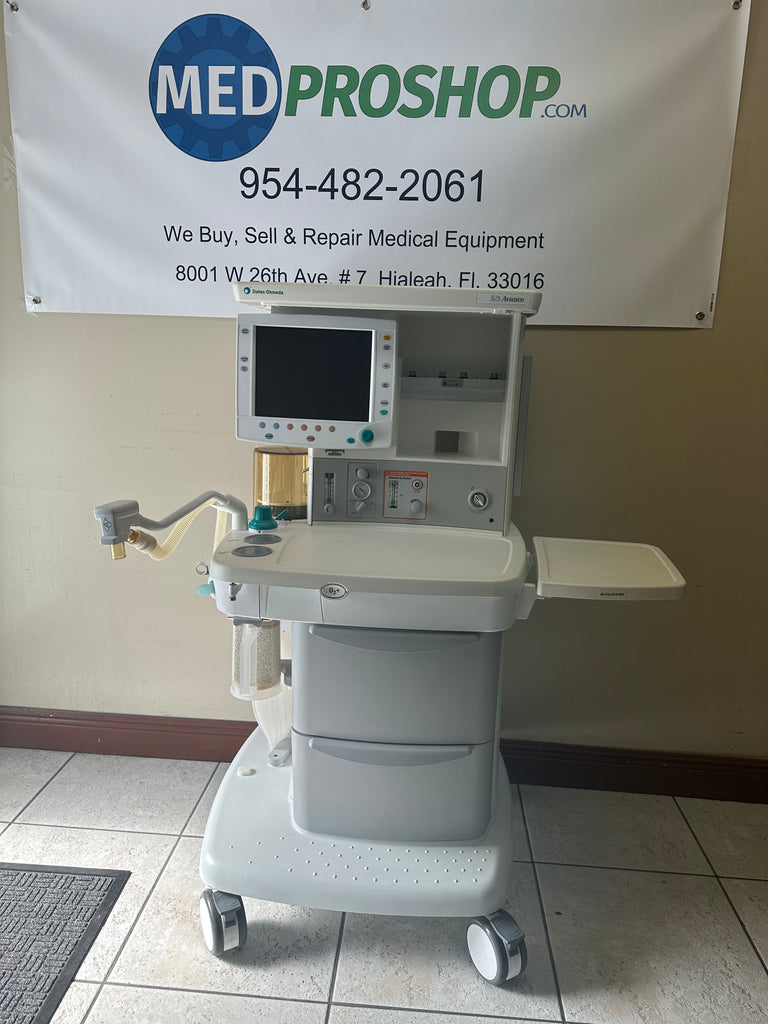

Datex Ohmeda S/5 Avance Anesthesia Machine

The Datex Ohmeda S/5 Avance Anesthesia Machine is an excellent product with several great features.

Features and Benefits:

• Accommodates 3 gases and 2 vaporizers
• Powerful ventilation and monitoring capabilities for secondary anesthetizing locations.
• Compact Frame; Fits Space-Constrained Areas.
• Integrated Oxygen, Volume, Airway Pressure Monitoring.
• Enclosed, Non-interchangeable Pneumatic Circuitry.
• Differentiated Pipeline, Cylinder Gauges.
• Master On / Off Switch; Activates Electronics and Pneumatics.
• Pin-Indexed, Gas-Specific Dual O2, and N2O Flowmeters.
• Selectatec® Vaporizer Manifold for two Tech 5 Vaporizers
• Oxygen Power Outlet.
• Fixed shelving with added Monitoring space.
• Two-drawer Storage Cabinet.
• Single-action Brake / Footrest.
• Full-height Dovetail Accessory Mounting System.
• Large, Easy-running Casters.

Specifications:

• Weight: 300 lb. (136 Kg)
• Height: 66 in. (168 cm)
• Width: 22 in. (55.87 cm)

Middle Shelf:

• Max Shelf Load: 24 lb. (11 kg)
• Size: 18.6 x 12.5 in (47.2 x 31.7 cm)
• Usable height: 6 in (15.2 cm)

Top Shelf:

• Max shelf load: 48 lb. (22 kg)
• Size: 23.5 x 14.2 in (59.6 x 36 cm)

Table Top:

• Height from Floor: 33.5 in (85cm)
• Size: 21.7 x 11.5 in (55.2 x 29.2 cm)
• Drawer Cabinet: Contains two 10.5 in x 15 in x 4 in drawers
• Absorber Arm Length: 14 in (35.5 cm)
• Vertical Adjustment from Floor: 10 in to 26 in (25.4 cm to 66 cm)
• Horizontal Adjustment: 6.5 in min; 11 in max (16.5 cm min; 27.9 cm max)
• Casters: Diameter 5 in (12.7 cm)
• Brakes: Brake bar lock on front casters; operated by footbar.
