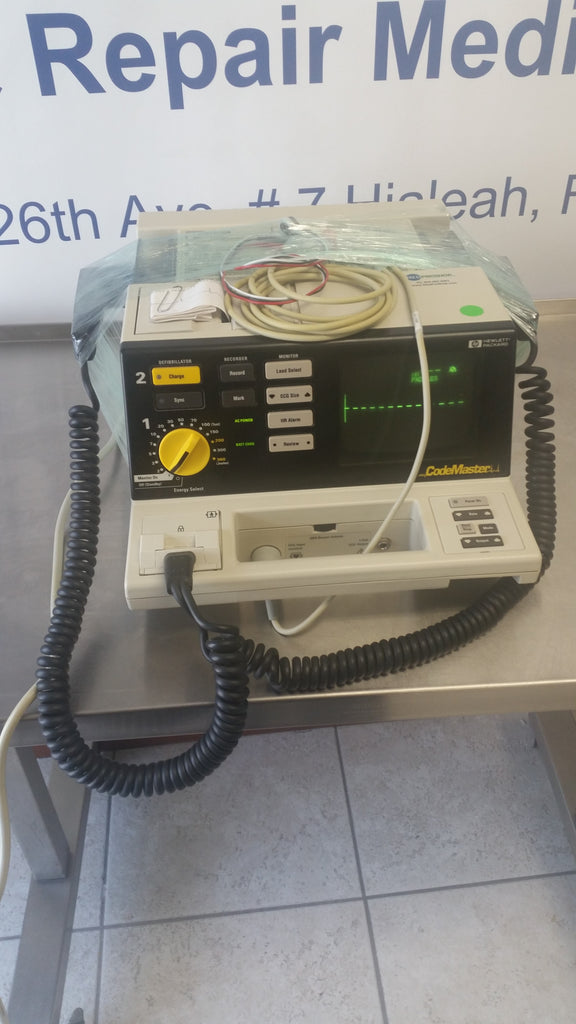

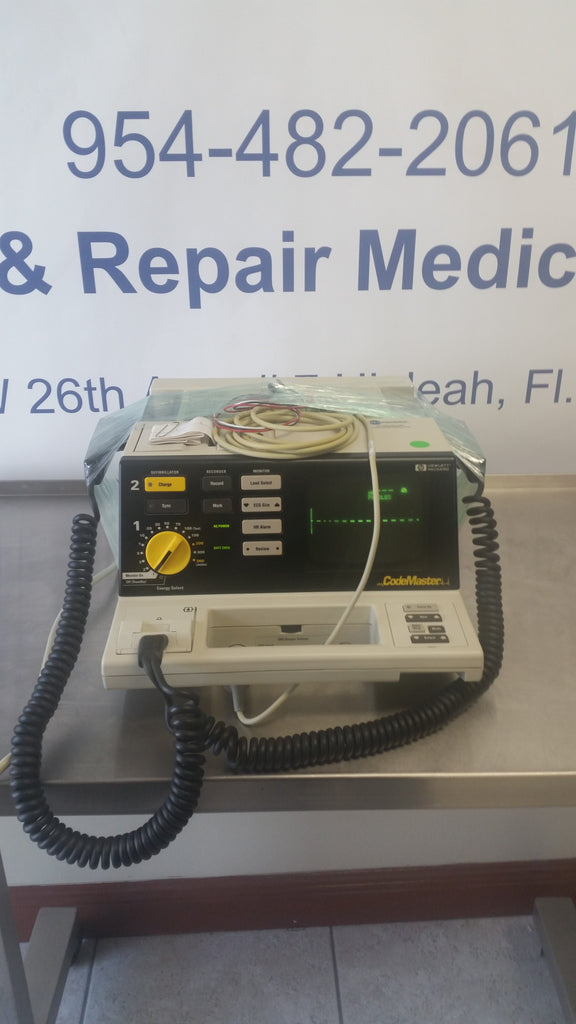

HP CodeMaster Defibrillator

HP CodeMaster Defibrillator - MEDPROSHOP
Regular price $ 1,120.29 Sale price $ 799.00

HP CodeMaster XL+ Defibrillator Features

The HP Codemaster XL+ defibrillator is a high-performance, high-speed defibrillator and charges from 0 to 360 joules in under 5 seconds, plus it offers a variety of advanced options easily customized to meet the needs of your unit. The CodeMaster XL+ Defibrillator by HP is a flexible choice for high-use areas of the hospital including operating rooms, intensive care units, cardiac care units, and emergency departments, as well as for clinics and ambulatory surgery centers.

  • Battery strength indicator LED light
  • Back-up AC power
  • Documents and stores events
  • Shock advisory option
  • Adjustable heart rate alarms
  • ECG Monitor
  • External Paddles
  • Recorder
  • Alarms and Code Summary
  • Biomedically Inspected
  • Patient Ready

HP CodeMaster XL+ Defibrillator Specifications

Dimensions and Weight

  • Height: 7.9” (20 cm)
  • Width: 11.8” (30 cm)
  • Depth: 15.6” (39.7 cm)
  • Weight: 24 lbs (10.9 kg)

Battery

  • Type: Rechargeable, sealed lead-acid battery 4 Ah, 12 V nominal
  • Charge time:
    • 2 hours to 90% of full capacity
    • 18 hours to 100% capacity
    • Repeated charging to less than 100% will reduce the useful life of the battery
  • Capacity: 2.5 hours monitoring or 50 full-energy discharges or 1 hour monitoring and recording
  • AC input: 100 to 230 VAC ±15%, 50/60 Hz
  • Battery indicators:
    • Illuminated LED indicates battery is charging
    • Low Battery message appears on the monitor

Defibrillator

  • Waveform:
    • Damped Sinusoidal
    • Output Energy (Delivered): 2, 3, 5, 7, 10, 20, 30, 50, 70, 100, 150, 200, 300, and 360 joules
  • Charge Control: Push-button on apex paddle and on front panel
  • Charge Time: Less than 5 seconds to 360 joules with a functional battery installed
  • Paddle Contact Indicator: Shows quality of contact before discharge
  • Charge-done Indicator:
    • Display indicates available energy
    • Charge-done light on apex paddle
    • Charge done tone
  • Synchronizer:
    • SYNC message appears on the monitor and is annoted periodically on the recorder while in synchronous mode
    • An audiblebeep sounds with each detected R-wave, while a marker on the monitor and sync mark on the recorder strip indicate the discharge point
  • Paddles:
    • Standard paddles are anterior/anterior
    • Adult electrodes (83 cm sq) slide off to expose pediatric electrodes (21 cm sq)
    • Paddle cord is 10 feet (3m)
    • Full range of internal paddles available

Monitor

  • Input: ECG activity may be viewed through the paddles or patient cable
  • Lead Fault: LEADS OFF message and dashed baseline appear on the monitor if a lead becomes disconnected
  • Common Mode Rejection: Greater than 100 dB measured as per AAMI standards for cardiac monitors
  • Heart Rate Display: Digital read out on monitor from 20 to 280 bpm

Event Summary

  • Stores and prints 3 seconds pre-and 8 seconds post-critical event data for up to 28 events
  • Data is retained after unit is turned off

Recorder

  • Annotations:
    • Time
    • Date
    • Heart Rate
    • Event Markers
    • ECG Mode
    • Selected Energy
    • Actual Delivered Energy
    • Peak Current
    • Patient Impendence
  • Recorder Mode:
    • Automatically documents events and ECG during defibrillation episodes
    • The recorder can be configured to run in either real time or with a 6-second delay
  • Frequency Response:
    • 0.5 to 40 Hz monitor bandwidth
    • 0.05 to 150 Hz diagnostic bandwidth is selectable
  • guaranteeQuality checked
  • returns Within 30 days
  • supportLifetime 24/7/356
