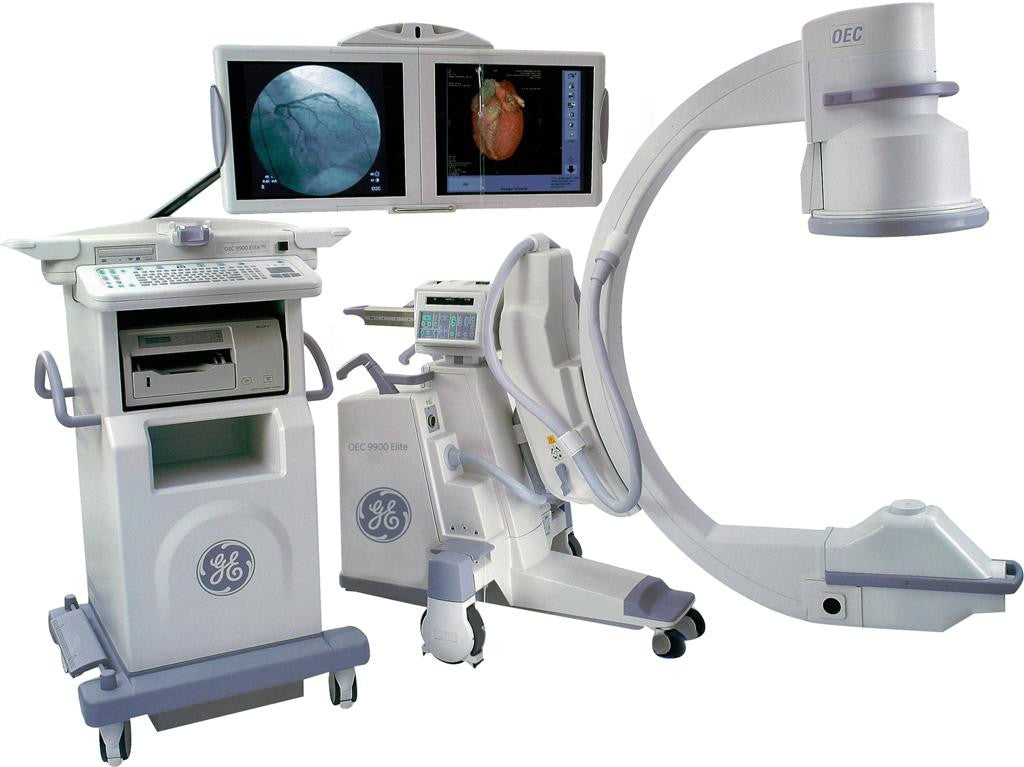

The OEC 9900 is a mobile imaging system that combines real-time 1k x 1k imaging resolution with a rotating anode X-ray tube and high powered 15 kW generator. Call for price

Technical Specificaitons Generator • High frequency generator 15kW full-wave • Up to 120 KVP and 75MA for radiographic exposures • Continuous fluro-mode up to 20 mA • One shot frame integration (low, medium, high) • Full power from standard 110V 15A Or 220V 8A outlet • Patented energy buffer design X-Ray Tube • Rotating anode X-ray tube • Focal spots: 0.3 - 0.6 mm • 300,000 HU Anode heat capapcity Physical Specificaitons • Free Space in Arc - 31” • Depth of Arc: 26” • Arc orbital movement: 115 Degrees • Left/Right wig-wag scan: +/- 20 degrees • Vertical Travel: 18” motorized • Horizontal travel: 8” • Lateral rotation: +/- 180 degrees C-arm Dimensions • Length: 75.9” • Height 69.9” • Width: 33” Workstation Dimensions • Width: 27” • Height 64” • Depth: 27”
